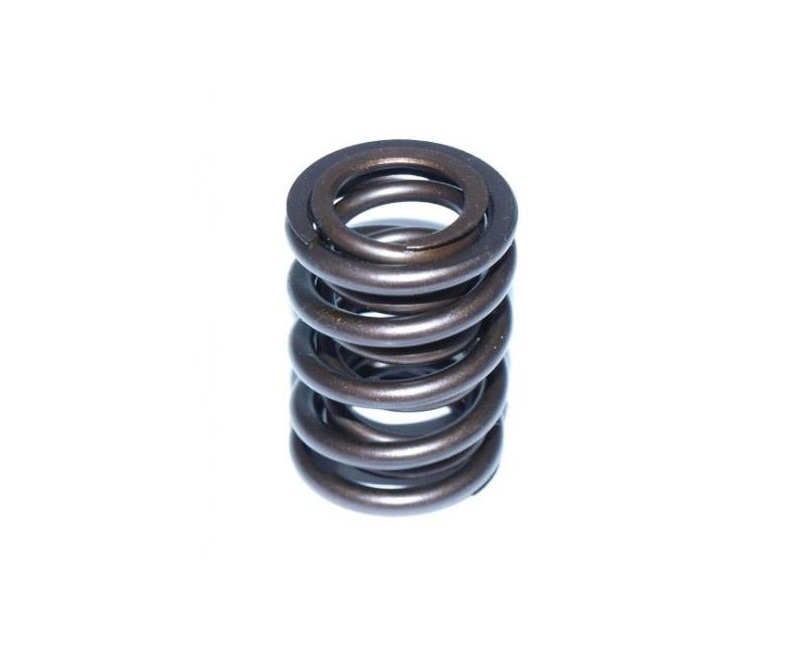

Schrick Street Valve Spring Kit - E30 M3 (S14)

Schrick dual valve springs that have been approved to work with Schrick sport cams (272, 276, 284, and 292 duration). This is a dual inner + outer spring design, similar to the Motorsport/Evo 3 springs.

Unfortunately, we don't have a comparison of spring rate or height between the Motorsport springs and these. However, they share applications and usage (street use only). The Motorsport springs have served S14 owners for decades with near universal satisfaction and that is the spring we would probably recommend. But there may still be a place for the Schrick springs (especially if BMW discontinued the Motorsport springs). The Schrick springs may be a better fit for your engine build - see specs below.

Schrick retainers, seats, and keepers also available.

Schrick Spring Specs
Outer Spring Outside Diameter: 31.3mm
Inner Spring Inside Diameter: 17.4mm
Outer Spring Wire Diameter: 3.85mm
Inner Spring Wire Diameter: 2.6mm
Outer Spring Max Install Height: 34.0mm
Outer Spring Min. Operating Height: 21.0mm
Max Valve Lift: 13.0mm
Force @ Max Install Height = 202N (20.6kg, 45.4lbf)
Force @ Min. Operating Height = 630N (64.2kg, 141.6lbf)

Sold per valve. Qty "1" = 1 inner/1outer spring.
Order 16 for S14.

BMW Fitments:

3 Series
E30 (87-91) > M3
