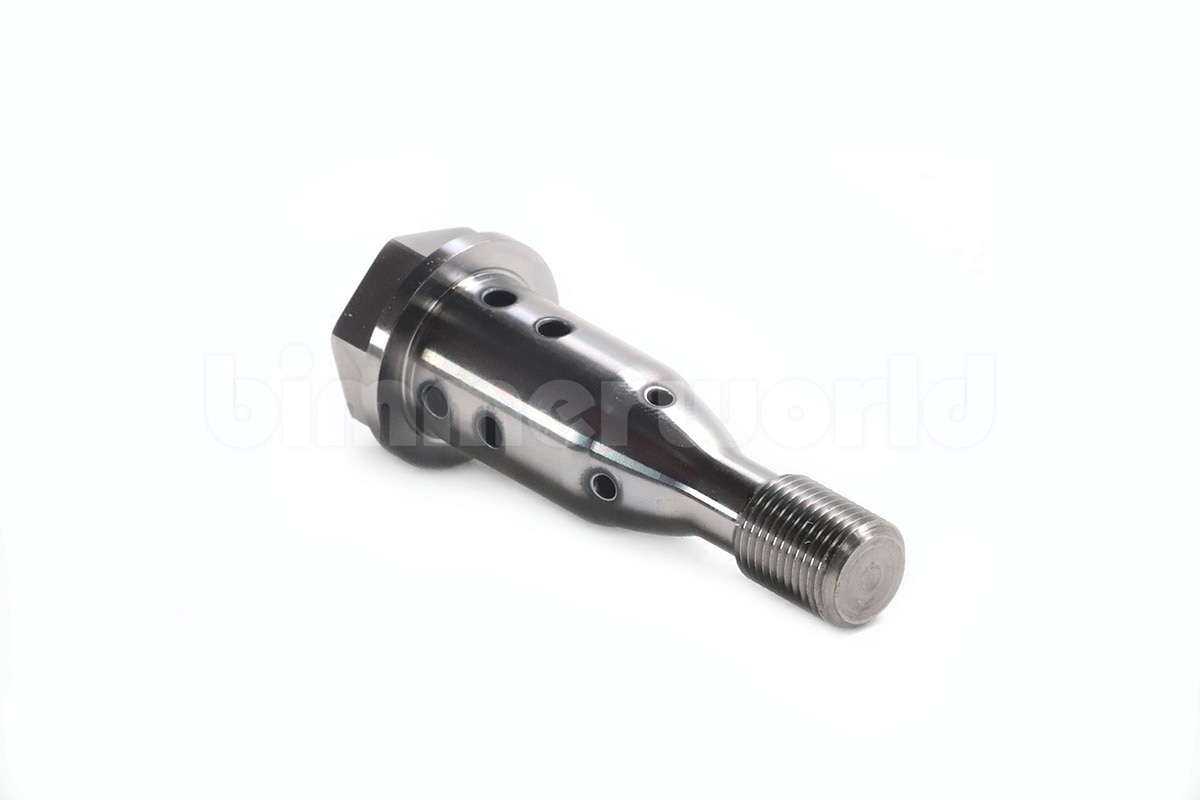

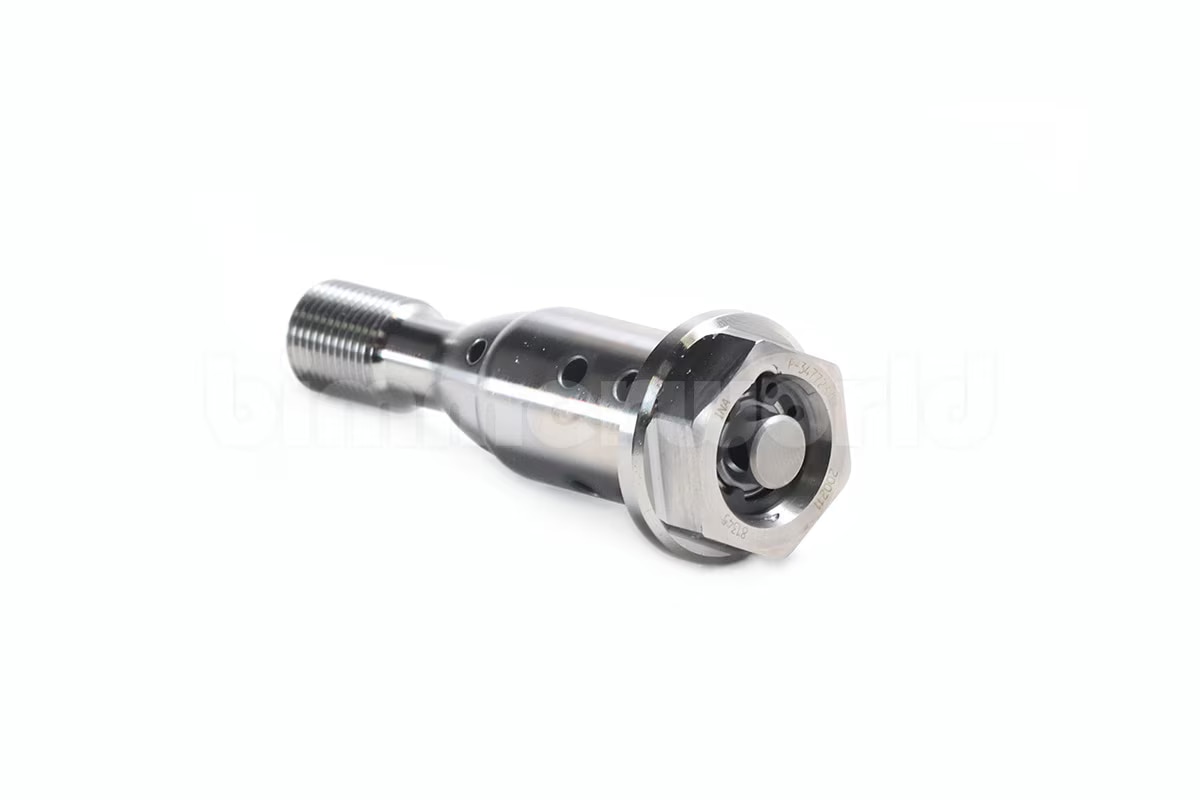

VANOS Central Valve, INA - F22, F3X, F10, X1/X3/X4/Z4 28i (N20/N26)

New camshaft oil valve to restore peak performance. OEM replacement for BMW part #11367583820.

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -



This part is listed by BMW as BMW part number 11367583820 (11 36 7 583 820) and is described as the OEM INA VANOS Control Valve for the intake or exhaust cam on N20 and N26 engines. This valve fits to F22 228i, F30 320i/328i, F32 428i, F10 528i, and X1/X3/X4/Z4 28i models. Fits either the intake or exhaust cam.

This is the oil supply valve that directs oil up into the Adjuster unit. The plunger from the solenoid pushes oil through this valve to activate the Adjuster unit. A failure in any part of this system will cause the camshaft to be fixed in one position, or may have a delayed reaction, affecting performance and drivability.

The N20 VANOS system is made up of several components, all of which could give you VANOS issues (power loss, rough running, poor fuel economy, slow starting, rattle noises, and check engine faults). This central valve works with the N20 actuator, adjuster unit, sensor wheel, and the oil system itself. There are multiple tests that can be run with advanced diagnostic equipment to determine which of the components is at fault. It's vital that you have the problem(s) correctly diagnosed beforehand to avoid costly extra work and frustration.

This is an OEM VANOS Valve manufactured by INA - the original supplier to BMW for this part, as well as many other engine components. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:

2 Series
F22 / F23 (2014+) > 228i
F22 / F23 (2014+) > 228i xDrive
3 Series
F30 / F31 / F34 (2012+) > 320i
F30 / F31 / F34 (2012+) > 320i xDrive
F30 / F31 / F34 (2012+) > 328i
F30 / F31 / F34 (2012+) > 328i xDrive
4 Series
F32 / F33 / F36 (2014+) > 428i
F32 / F33 / F36 (2014+) > 428i xDrive
5 Series
F10 / F11 (11-16) > 528i N20 (2012-2016)
X1 Series
E84 X1 (2013-2015) > X1 28i
E84 X1 (2013-2015) > X1 28i xDrive
X3 Series
F25 X3 (2011-2017) > X3 sDrive28i
F25 X3 (2011-2017) > X3 xDrive28i
X4 Series
F26 X4 (2015-2018) > X4 28i xDrive
Z Series
E89 Z4 (2009-2016) > Z4 sDrive28i
