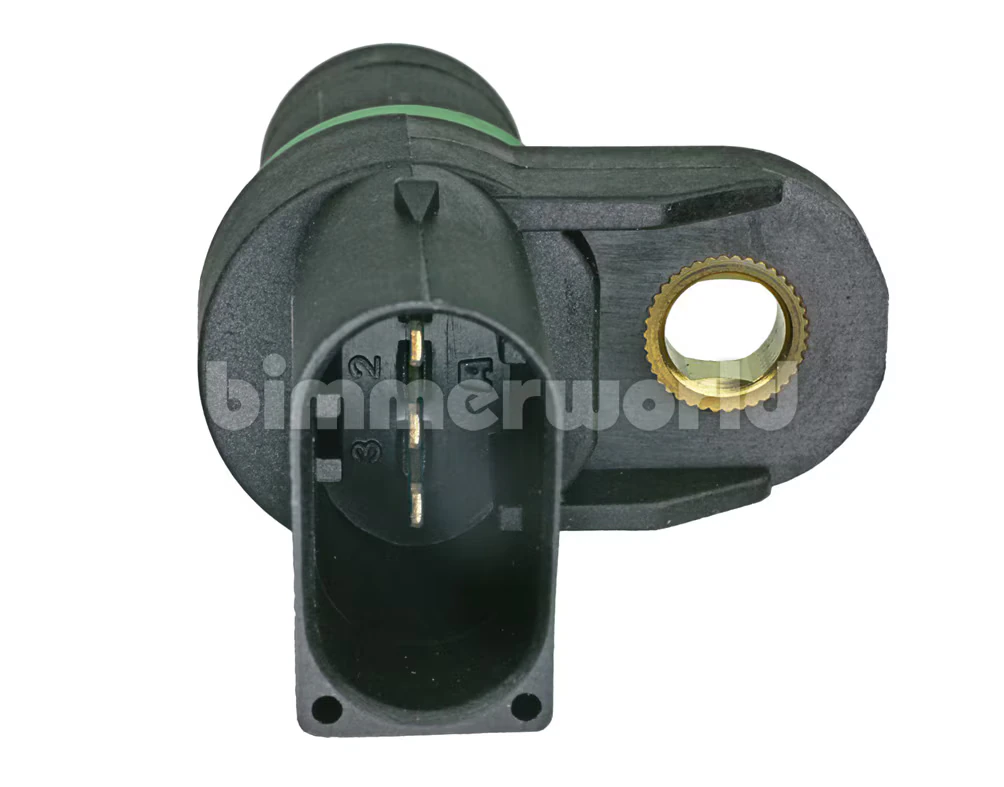

Exhaust Cam Position Sensor, Meyle - E46, E39, E60, X3, X5, Z3, Z4
Important sensor used by the ECU. Replaces BMW part #12147518628
Camshaft Sensor - Exhaust Side - M52TU and M54 Engines
This part is listed by BMW as BMW part number 12147518628 (12-14-7-518-628) and is described as OEM Electrical System Pulse Generator, Camshaft 12147518628.
The cam shaft position sensor (CPS) is a common failure item on many 1999-2006 model BMW 6 cylinders. This sensor was used on many 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006 model 3 Series, 5 Series, X3 and X5 models with the 2.5 / 2.8 and 3.0 liter straight six 24v engine (dual vanos).
When this sensor fails (or begins to fail), it will normally throw engine codes as well as a check engine light. The engine will likely go into what's known as "limp mode", which is BMW's safety program and makes the car feel very low on power, rough running with hesitation to accelerate. Should the sensor completely stop sending a signal, it can (and will) leave you stranded on the side of the road. If it fails while parked, it can also create a no start situation as well.
This cam sensor is designed and engineered in Germany by Meyle to match or exceed the OEM part in every way. Meyle sees their products as an "OEM Premium" level of quality and value. Meyle emphasizes research, engineering, and testing even when reproducing an original design. Meyle parts are developed strictly in line with the guidelines and specifications of their own engineers in Hamburg, Germany and overseen and tested in the production process. Meyle parts are manufactured under ISO/TS 16949 standard, TUV approved, and have a four year warranty.
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E39 (97-03) > 525i
E39 (97-03) > 528i
E39 (97-03) > 530i
E60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 530i M54 (2004-2005)
E83 X3 (04-10) > X3 2.5i M54 (2003-2005)
E83 X3 (04-10) > X3 3.0i M54 (2003-2006)
E53 X5 (00-06) > X5 3.0i M54
E36/7 / E36/8 Z3 (96-02) > Z3 2.3
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
