Bottom-End Gasket Set - E30 M3 (1987-1991)

High Quality Replacement to BMW # 11111316993

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$58.10

This part is listed by BMW as BMW part number 11111316993 (11-11-1-316-993) and is described as Bottom-End Gasket Set for the E30 M3, 1988, 1989, 1990 and 1991.

This bottom end gasket set is used on the stock 2.3 liter S14 engine, but can also be used on the 2.5 liter variant some E30 M3 examples may have been converted to. In this case, the front crank seal will be different than what is included in this kit. If you are using a stock 2.3 liter S14, this bottom end gasket set will include all the parts for the job. Gaskets manufactured by an original equipment manufacturer (OEM) for BMW.

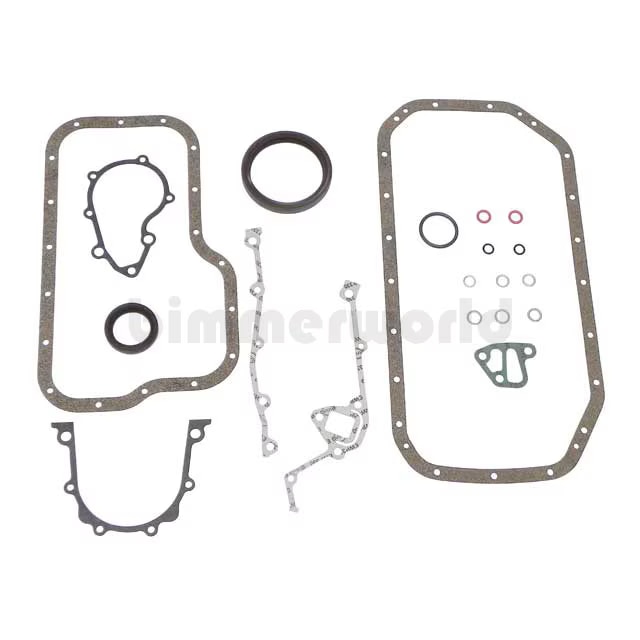

Included with this gasket set are all of the seals and gaskets commonly replaced when removing the oil pans:
2 x 07119906328, 10x2mm o-ring
3 x 07119963130, A12x15.5mm screw plug gasket ring
1 x 07119963151, A12x17mm gasket ring
2 x 07119963200, A14x18mm screw plug gasket ring
1 x 11131727974, upper oil pan gasket
1 x 11131727983, lower oil pan gasket
1 x 11141312616, front timing cover gasket
1 x 11141312617, front timing cover gasket
1 x 11141439570, front crankshaft shaft seal
1 x 11141727975, rear main seal housing gasket
1 x 11142249533, rear main seal
2 x 11411250421, oil pickup o-ring
1 x 11421312607, oil filter housing gasket
1 x 11511309692, water pump gasket
1 x 12611277129, 40x4mm gasket ring

For questions, BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.

BMW Fitments:

3 Series
E30 (84-91) > M3
