Timing Chain Tensioner Seal Ring - E36, E46, E39, Z3, Z4 (and others)

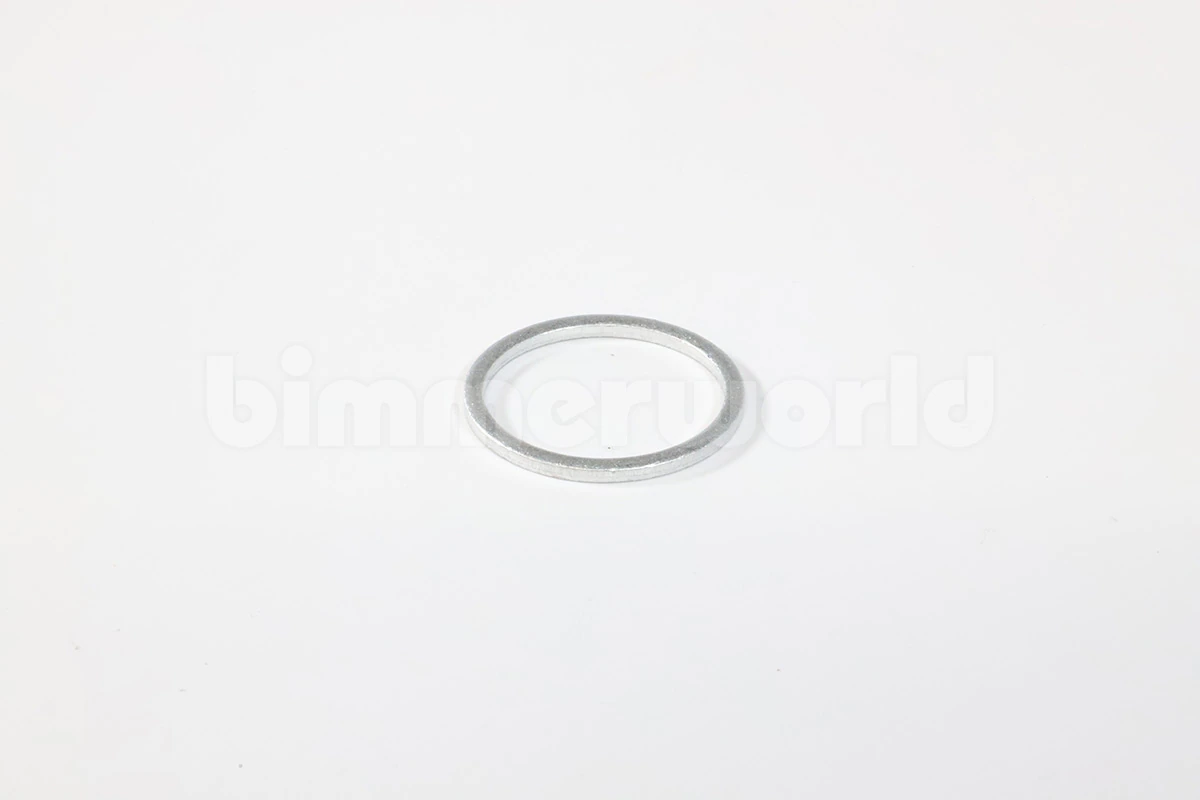

Do you have an oil leak coming from the timing chain tensioner on an M50, M52, M52TU, M54, S14, S38/M88, S52, S54 engine? This is the aluminum 26x31mm sealing ring that fits between the tensioner and the cylinder head and is supposed to keep oil out. Over time the tensioner backs out or the seal shifts and an oil leak develops. Because it's a crush seal it can only be used once and should be replaced (not tightened over and over).

Also used as an axle seal for BMW Isetta.

This is a Genuine BMW tensioner gasket ring with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

BMW Fitments:

3 Series
E30 (84-91) > M3
3 Series
E36 (92-99) > 323ic
E36 (92-99) > 323is
E36 (92-99) > 325i
E36 (92-99) > 325ic
E36 (92-99) > 325is
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
E36 (92-99) > M3 (1995)
3 Series
E46 (99-05) > 323Ci
E46 (99-05) > 323i
E46 (99-05) > 325Ci
E46 (99-05) > 325i
E46 (99-05) > 325xi
E46 (99-05) > 328Ci
E46 (99-05) > 328i
E46 (99-05) > 330Ci
E46 (99-05) > 330i
E46 (99-05) > 330xi
E46 (99-05) > M3
5 Series
E28 (82-88) > M5 (87-88)
5 Series
E34 (89-95) > 525i M50
E34 (89-95) > M5 (91-95)
5 Series
E39 (97-03) > 525i
E39 (97-03) > 528i
E39 (97-03) > 530i
5 Series
E60 / E61 (04-10) > 525i M54 (2004-2005)
E60 / E61 (04-10) > 530i M54 (2004-2005)
6 Series
E24 (77-89) > M6
X3 Series
E83 X3 (04-10) > X3 2.5i M54 (2003-2005)
E83 X3 (04-10) > X3 3.0i M54 (2003-2006)
E83 X3 (04-10) > X3 3.0si N52 (2007-2010)
X5 Series
E53 X5 (00-06) > X5 3.0i M54
Z Series
E36/7 / E36/8 Z3 (96-02) > Z3 2.5
E36/7 / E36/8 Z3 (96-02) > Z3 2.8
E36/7 / E36/8 Z3 (96-02) > Z3 3.0
E36/7 / E36/8 Z3 (96-02) > Z3 M - S54
Z Series
E85 / E86 Z4 (03-08) > Z4 2.5i M54
E85 / E86 Z4 (03-08) > Z4 3.0i M54
E85 / E86 Z4 (03-08) > Z4 M
