Head Gasket Set - E34 525i 93-95, E36 325i 93-95 M50

Head gasket failure is a not uncommon M50 issue and it's something to take seriously. This complete head gasket set for 1993-1995 E36 325i and E34 525i with the M50 engine has all of the gaskets and seals typically replaced during a head gasket repair. Instead of buying just the head gasket (BMW part #11121726619) you can get all of the other gaskets and seals needed to complete the job. This set includes -

3 x 07119963130, gasket ring, A12x15.5mm
1 x 07119963200, temp sensor gasket ring, A14x18mm
2 x 07119963201, exhaust manifold gasket ring, A14x18mm
1 x 07119963418, timing chain tensioner gasket ring, A26x31mm
1 x 11120034107, valve cover and spark plug gasket set
1 x 11121726619, head gasket (standard 1.75mm thickness)
1 x 11121738963, rear coolant connector gasket
1 x 11151730724, PCV connector o-ring, 18.5x3.3mm
2 x 11349064457, valve stem seal kit (2 x 12 seals = all 24 seals)
1 x 11361740840, VANOS unit profile gasket
1 x 11531265084, thermostat o-ring, 60x3.5mm
1 x 11531740437, thermostat housing profile gasket
1 x 11611716174, throttle body profile gasket
6 x 11611717259, intake manifold profile gasket
1 x 11611730725, vacuum connector o-ring, 24x3.5mm
1 x 11611735735, IAT sensor gasket ring
1 x 11611735736, IAT sensor washer gasket
1 x 11611735859, vacuum connector o-ring, 9.12x3.53mm
3 x 11621728984, exhaust manifold gasket
1 x 12141748398, sensor o-ring, 17x3mm
1 x 13531720251, fuel pressure regulator o-ring, 20x2.5mm
1 x 13531720252, fuel pressure regulator o-ring, 5x1.5mm
1 x 13541735380, throttle body thermostat o-ring
12 x 13641730767, fuel injector o-ring, 7.52x3.53mm
2 x 18301716888, exhaust manifold gasket
2 x 32411093596, VANOS oil line gasket ring, A14x20mm

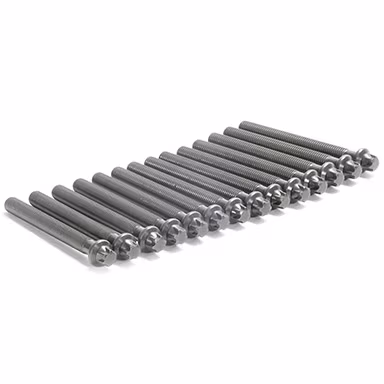

As this gasket set fits multiple models over multiple years some extra parts may be included that may not be used on your particular model. Additional parts such as head bolts, other hardware, and sensors are sold separately.

Symptoms of head gasket failure include: white residue (tapioca) in the valve cover, under the oil filler cap, and in drained oil, low coolant (not caused by failure in cooling system), low oil, oil leak onto exhaust manifold, and loss of power from loss of compression. Cooling system trouble on the M50 must be addressed quickly as the aluminum head is easily damaged if overheating occurs.

This part is manufactured by an aftermarket supplier of European auto parts, including many gaskets. While not carrying OEM status, this part follows the design of the original very closely and uses similar materials. An aftermarket part may even have the same TUV approval as its OEM counterpart. The brand may even be OEM to another manufacturer besides BMW. This aftermarket brand has a two year warranty - the same as Genuine BMW and OEM brands.
