Head & Top End Gasket Set, Elring - F22, F30, F32, G30, G01, G02, B46A

Complete* top-end/cylinder head gasket & seal set for B46A engine found in F22 230i, F30 330i, F32 430i, G30 530i, G01 X3 30i, G02 X4 30i.

This head gasket set for B46A engines has all of the gaskets and seals associated with nearly any work done above the engine block, including head gasket replacement, turbocharger replacement, intake manifold removal, VANOS and camshaft work, and more. It's good planning to have a top-end and bottom-end gasket on hand in your garage because you never know when you need a gasket in a pinch. Gasket sets are like having your very own BMW parts department at your finger tips!

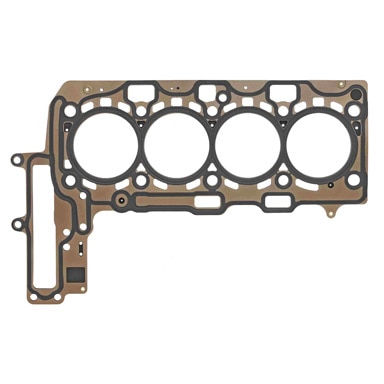

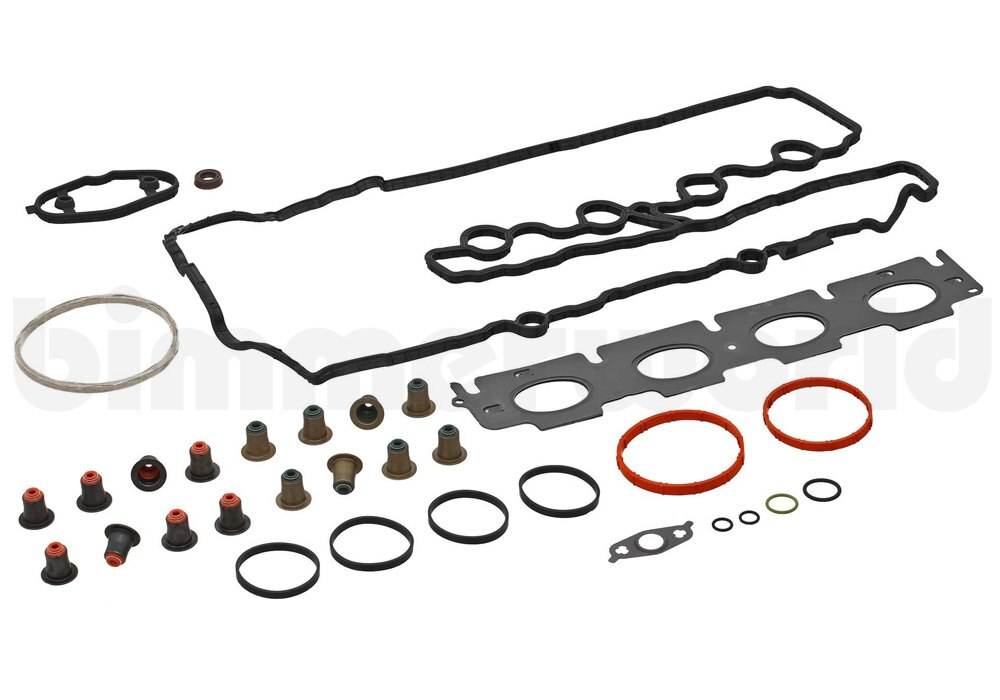

*The head gasket is sold separately - see Related Items below. Instead of buying just the head gasket (BMW part #11128654272) you can get all of the other gaskets and seals needed to complete the job. This B46A top end gasket set includes:

1 x 11378662525, Valvetronic Actuator shaft seal
1 x 11128618519, valve cover gasket set
1 x 11128618520, high-pressure fuel pump gasket
8 x 11340038719, intake valve stem seal
8 x 11340035853, exhaust valve stem seal
4 x 11618637800, intake manifold seal
1 x 11627617523, exhaust manifold gasket
1 x 18307581970, downpipe flange gasket ring
1 x 11429487723, turbo oil drain flange gasket
2 x 11537610049, turbo oil supply pipe o-ring
1 x 13548632344, throttle body seal gasket

Additional parts such as the head gasket, head bolts, other hardware, and sensors are sold separately (see below).

This is an OEM B46A head gasket set manufactured by Elring - one of the original suppliers to BMW for these gaskets, as well as many other gaskets and seals. As the OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. These parts have a two year warranty.
