N55 Turbocharger Install Kit, Rein - E70 X5 35i, E71 X6 35i

This kit includes the N55 turbo oil and coolant lines plus installation hardware and gaskets for swapping turbos on your E70 X5 35i or e71 X6 35i.

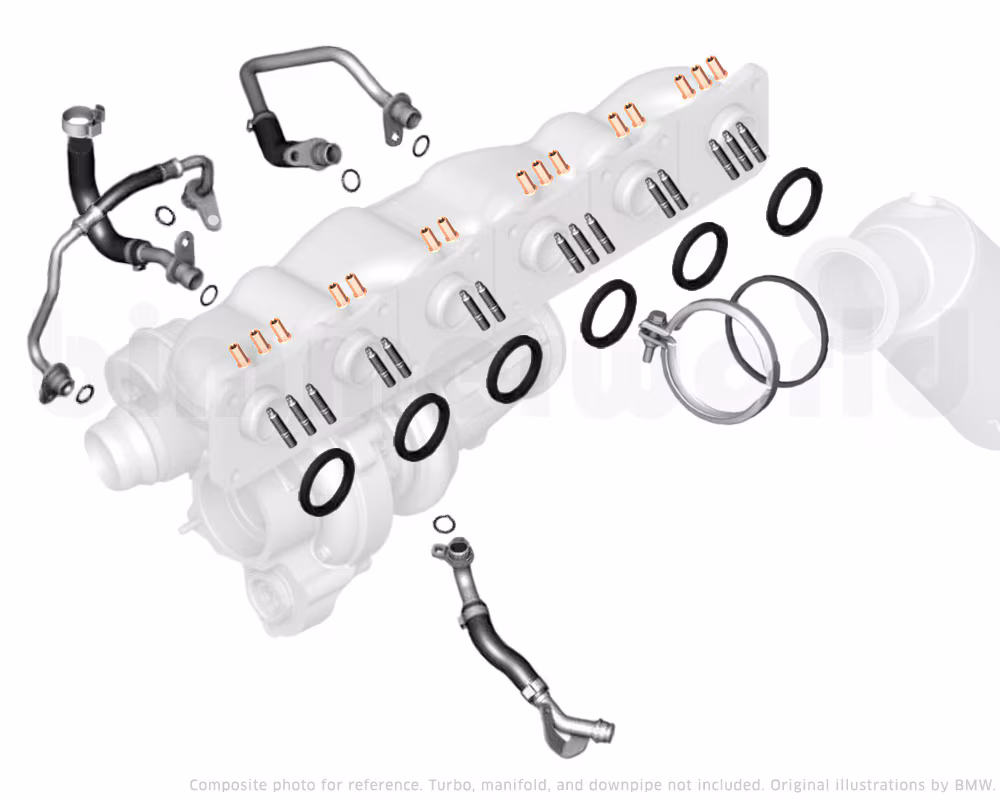

Kit Contents:
1 x 18307553601, Turbo to Downpipe Gasket
1 x 11427585403, Oil Return Line
1 x 11657620508, Turbo to Downpipe T-Bolt Clamp
1 x 11427585402, Oil Supply Line
1 x 32416751128, Hose Clamp
15 x 11127593376, Exhaust Manifold Stud
1 x 11537583899, Coolant Supply Pipe
15 x 18407502196, Exhaust Manifold Copper Flange Nut
1 x 11537583903, Coolant Return Pipe
6 x 11657593303, Exhaust Manifold Gasket Ring

This kit from Rein/CRP includes the full set of turbo oil lines and coolant lines as well as the basic installation hardware required for replacing a N55 turbo. This kit does not cover every gasket, nut, or bolt that can be replaced during turbo installs. But it includes a lot of the core pieces. Replacing turbos can be done several ways and your method of removal/install will dictate your complete list of replacement parts. If you need any other N55 cylinder head or top end gaskets, see our Related Items below.

It should be noted that there are multiple methods for replacing the turbo and manifold on N55 models. BMW will remove the right side steering mount arm. Others say to remove the steering rack and sway bar. We have also seen the entire subframe, engine, and transmission dropped from underneath. With any method additional parts are likely required. Plan ahead to have all of your parts on hand before beginning the work. See below for additional product links or contact us for advice.

This kit of N55 turbo parts is manufactured by Rein Automotive (CRP) - a front-line supplier of original equipment, private label, and in-house engineered replacement parts. Rein replacement products meet or exceed all of BMW's original design, fitment, and performance requirements and they carry out testing with ISO and German TUV for quality control. Rein parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. These parts have a two year warranty.

Don't forget to prime your turbo with engine oil before running the engine!

For full BMW fitment information or for assistance from one of our BMW experts, we recommend calling us at 877-639-9648.
