Front Upper Strut Mount Kit, Meyle, 3-Bolt - F22, F30, F32

OEM+ 3-bolt strut mount, direct replacement for BMW part #31305A3D513

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$73.99

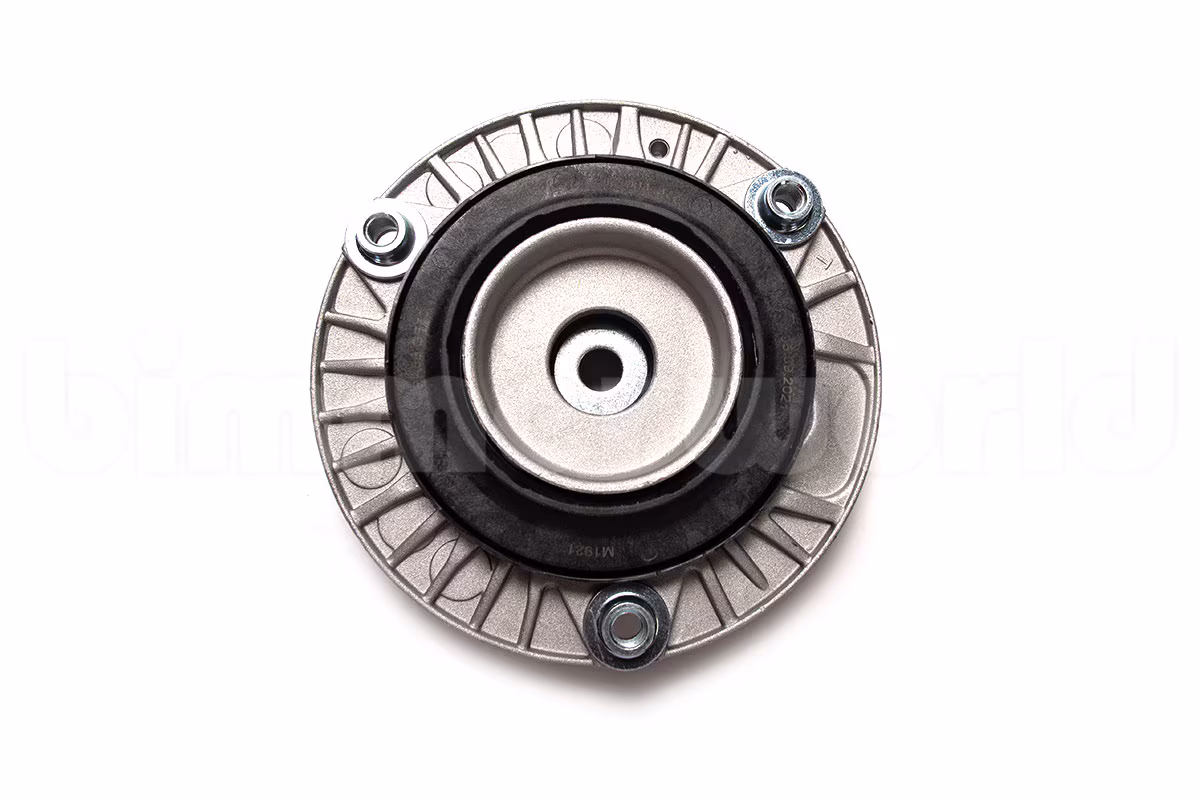

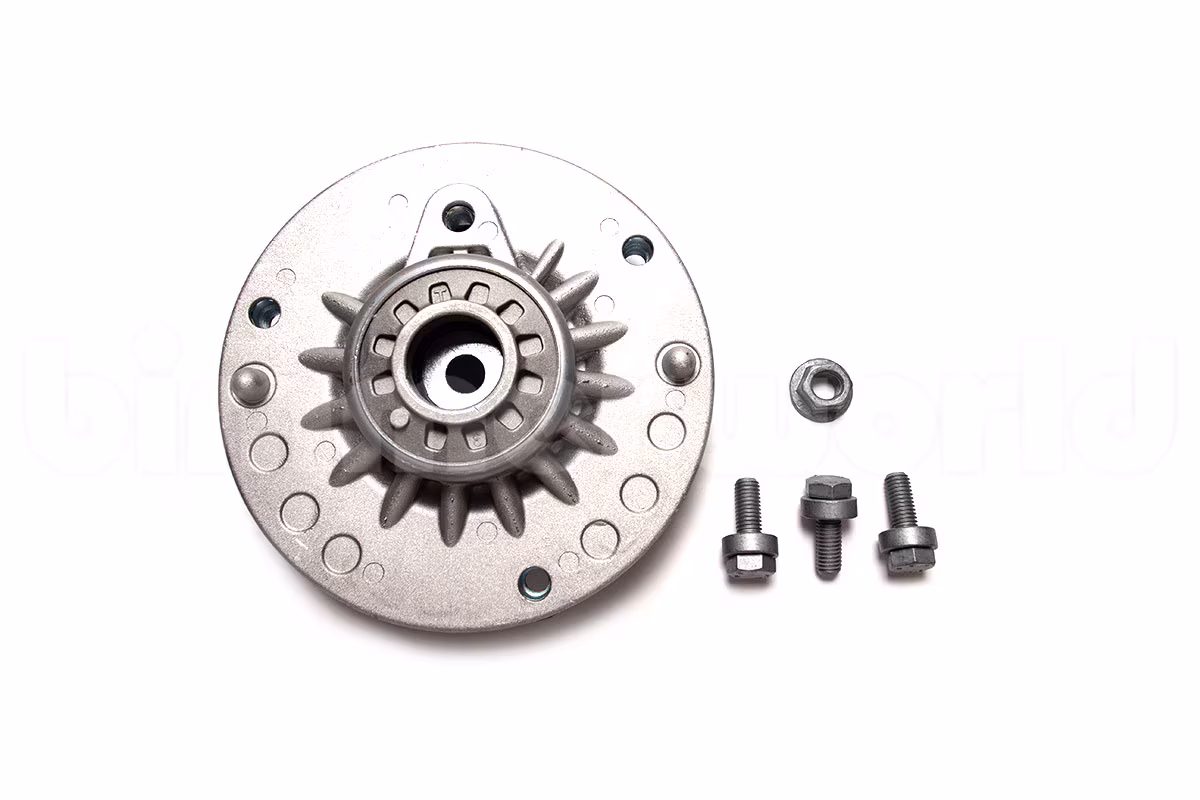

Front struts/shocks on the F22 228i, F30 328i/335i, and F32 428i/435i are mounted to the chassis with this front upper strut mount. It's a dense rubber mount that also incorporates a bearing that allows the strut to rotate as the steering changes. Over time the rubber breaks down and the bearing wears out and the entire mount should be replaced.

Not for cars with Adaptive M suspension.

Important Application Note: this strut mount uses 3 mounting holes for M10 bolts. This design was changed partway through the 2016 calendar year to 5 mounting holes for M8 bolts. They are not interchangeable. If you car was produced 2012-2015 this is the correct mount for you. If your car is a 2016 model year we suggest checking your current strut mount before ordering.

Replaces previous BMW part numbers 31 30 5 A3D 513, 31306880438, 31306863135.

This front strut mount is designed and engineered in Germany by Meyle to match or exceed the OEM part in every way. Meyle sees their products as an "OEM Premium" level of quality and value. Meyle emphasizes research, engineering, and testing even when reproducing an original design. Meyle parts are developed strictly in line with the guidelines and specifications of their own engineers in Hamburg, Germany and overseen and tested in the production process. Meyle parts are manufactured under ISO/TS 16949 standard, TUV approved, and have a four year warranty.

BMW Fitments:

2 Series
F22 / F23 (2014+) > 228i
F22 / F23 (2014+) > 228i xDrive
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
