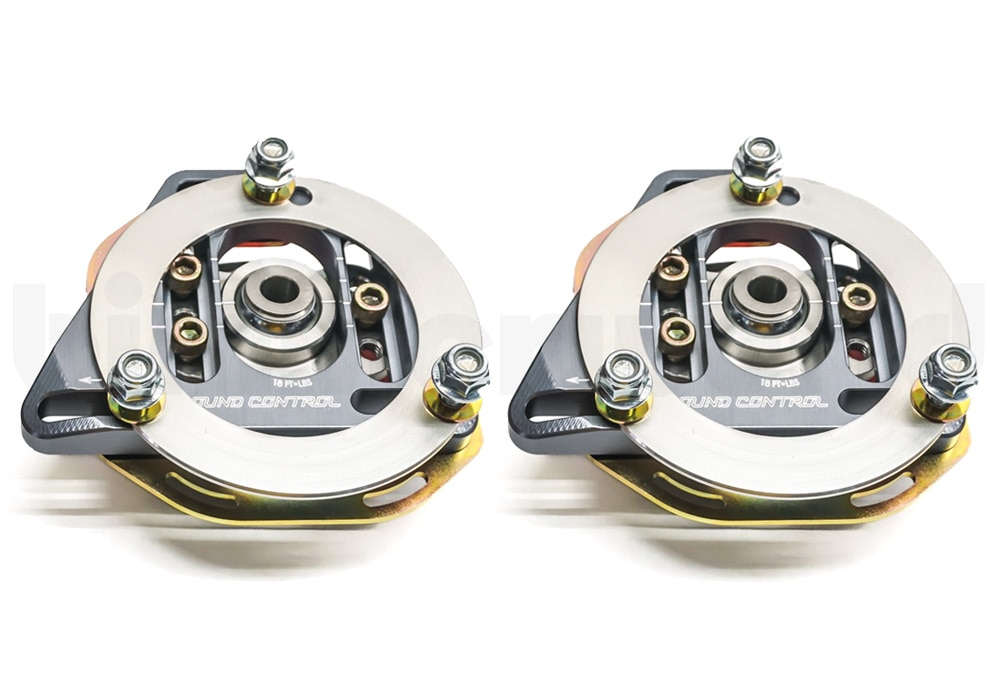

Ground Control Hybrid Camber/Caster Plates - E46 3 Series

Adjustable camber & caster plates for E46 Non-M using 2.5" springs and a 14mm strut stem*. These are a “check every box” camber plate design, packed with features -

+ Camber AND Caster adjustment (separately)
+ Padded upper spring perch for better street comfort
+ Made for 2.5" coilover springs
+ Extra shock travel built in to avoid excessive bottoming-out
+ Aluminum camber plate assembly with
+ Stainless steel sliders and
+ Stainless steel upper reinforcement ring and
+ Anodizing or plating on all components, including hardware
+ Fast, repeatable alignment changes at the track or the driveway**
+ Ground Control's proprietary stainless spherical top bearing
+ Ground Control's proprietary needle bearing spring perch

The hybrid adjustable plates provide up to 3.5° negative camber with no cutting or modification required.

These unique hybrid plates are slotted for independent adjustment of both camber and caster - just like race plates. The benefit of the added hybrid design is that it isolates all mounting points with rubber to dampen jolts. Features like a CNC machined aluminum housing, aircraft-quality spherical and needle bearings, and stainless steel slider inserts make these plates the best and most durable on the market at any cost.

2.5-inch ID springs only. Sorry, not for 2.25-inch or 60mm. We have many, many 2.5-inch spring options available so reach out if you want to discuss a conversion.

*We need to know your brand of strut and some other details of the upper strut stem. This kit will work with a straight 14mm stem or a 14/16mm stem (M14 nut). It's not for any M12 strut stems. Most Bilstein and KONI struts will be M14 but we need to confirm a few details with your order.

**Camber and caster changes require that corner/wheel to be unloaded, such as with a floor jack. Changes are easy and fast once the suspension is unloaded.
