Bolts, screws, and nuts to replace when removing the front subframe on F22 2-series, F30 3-series, F32 4-series models (including xDrive*).
This kit includes the hardware needed when removing the front subframe or access to the oil pan for gasket replacement, rod bearings, crank hub, or any other work done with the oil pan removed. This package closely follows the BMW method** for removing the front subframe and includes the hardware called for in the BMW diagrams.

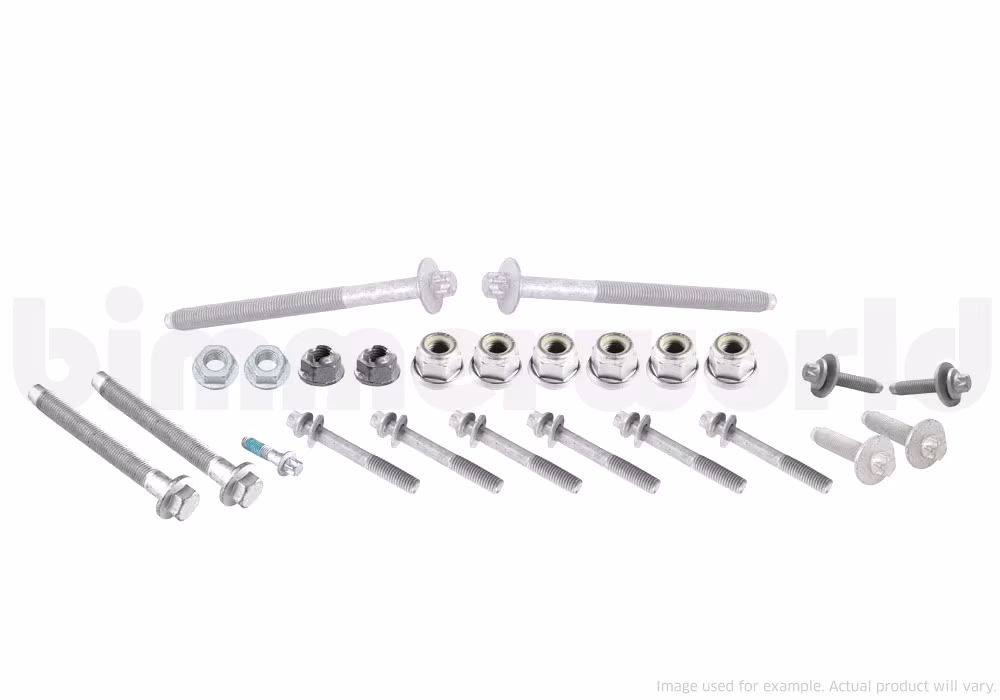

Kit includes -
1 x 32306778609, steering shaft coupler bolt
2 x 33306787062, wishbone outer nut
2 x 33306787062, thrust arm outer nut
2 x 33306787062, tie rod outer nut
2 x 33326768884, sway bar link nut
2 x 07119904670, motor mount top nut
6 x 31106794380, motor mount bottom screw
2 x 31106793894, Torx screw, M12x45mm
2 x 31106793893, Torx screw, M12x165mm
2 x 07119907452, Hex screw with flange M14x60mm

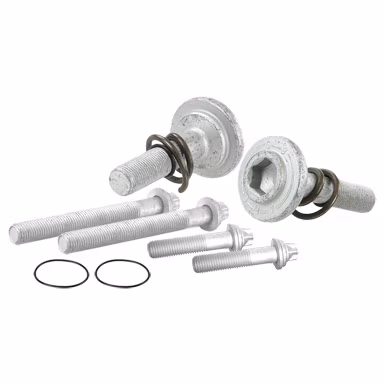

*the list above is the same part numbers for RWD and xDrive models. However, additional parts will be required for the front axles on xDrive cars. See our Related Items below for suggestions.
**the factory BMW procedure involves releasing the control arms at the outer hub/knuckle and dropping the subframe with the arms still attached. Others will prefer to remove the arms from the subframe. There are arguments for both but this is the factory-documented way.
This package of F3X subframe hardware closely follows the BMW procedure for dropping the front subframe. There are obviously multiple ways to do this. There may be bolts or nuts in this package that you don't use. And we did not include every bolt and nut that could be replaced. If you have additional requests or changes we'd be happy to accommodate you.
Undertray reinforcement bolts are not included. The factory torque spec involves an an extra little stretch (56Nm + 90°) but we know many people who re-use them, or did not follow the factory torque spec, so we made them optional here - see Related Items below (#31106858433).
On some cars there is a foam isolator between the subframe and the frame rail. As far as we can tell BMW installed these on cars with run-flat tires to better isolate road vibrations and harshness. If you wish to replace them, see our Related Items below (#31106856004).
This hardware are manufactured by original suppliers to BMW for many other bolts and nuts. As an OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.
BMW Fitments:
2 Series
F22 / F23 (2014-2021) > 228i
F22 / F23 (2014-2021) > 228i xDrive
F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M235i
F22 / F23 (2014-2021) > M235i xDrive
F22 / F23 (2014-2021) > M235i-Racing
F22 / F23 (2014-2021) > M240i
F22 / F23 (2014-2021) > M240i xDrive
F22 / F23 (2014-2021) > M240i-Racing
3 Series
F30 / F31 / F34 (2012-2019) > 320i
F30 / F31 / F34 (2012-2019) > 320i xDrive
F30 / F31 / F34 (2012-2019) > 328d
F30 / F31 / F34 (2012-2019) > 328d xDrive
F30 / F31 / F34 (2012-2019) > 328i
F30 / F31 / F34 (2012-2019) > 328i xDrive
F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
