Bottom-End Gasket Set, BMW - E39 M5, S62

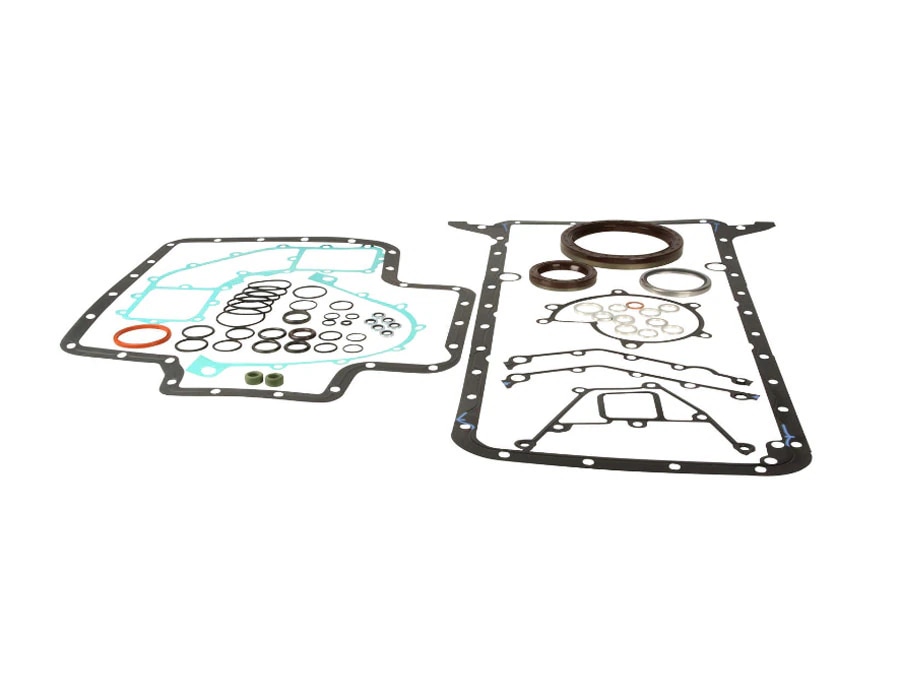

Complete bottom-end/engine block gasket set for the S62 engine in the E39 M5.

This OEM bottom end gasket set will be invaluable when working in the oil pan and timing covers of the S62. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the engine up to the upper timing cover (see detailed parts list below). This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - oil pan gasket, rod bearings, rear main seal, or during an engine rebuild. These are all OEM gaskets so the quality and fitment are exactly what you expect.

S62 lower gasket set includes:
1 x 07119963151, oil drain plug seal ring
2 x 07119963225, coolant drain seal ring
3 x 07119963252, screw plug gasket seal ring (Alpina V8 only)
1 x 07119963355, timing tensioner gasket seal ring
1 x 11131407532, lower oil pan gasket
2 x 11137830112, solenoid valve o-ring
2 x 11137830113, solenoid valve o-ring
2 x 11137830114, solenoid valve o-ring
1 x 11441406693, solenoid valve o-ring
1 x 11137831014, upper oil pan gasket
1 x 11140001187, lower timing cover gasket set
1 x 11141275466, crankshaft front seal
1 x 11141405969, rear cover gasket
6 x 11141435968, rear cover washer gasket
1 x 11141710247, rear main seal
1 x 11141736521, rear cover gasket
1 x 07119906363, timing rail o-ring
2 x 11141736758, timing rail gasket seal ring
1 x 11411304178, oil pipe o-ring
1 x 11421406872, oil pipe o-ring (pump end)
1 x 11421407015, oil pipe o-ring
2 x 11421702905, oil hose o-ring
2 x 11421702916, oil hose o-ring
1 x 11421713597, oil pipe o-ring (pump end)
1 x 11421741129, control valve o-ring
1 x 11431707164, dipstick tube o-ring
2 x 11431717666, dipstick o-ring
1 x 11441406694, oil heat exchanger o-ring
1 x 11441406702, oil heat exchanger o-ring
2 x 11531407002, oil heat exchanger connector o-ring
2 x 11727514859, oil control valve o-ring
1 x 11511406765, water pump gasket
1 x 11531312287, thermostat o-ring
1 x 12611744292, oil level sensor o-ring
2 x 07119963200, oil pipe gasket seal ring
2 x 32411129986, oil pipe gasket seal ring

Some items are not included from BMW, such as single-use bolts, belts, tensioners, coolant hoses, and other "while you're in there" items. BMW calls for new hex bolts on the upper and lower oil pans. See below for some of these Related Items.

This is a Genuine BMW S62 lower gasket set with a two year warranty. Buying a Genuine part will usually be more expensive than an OEM or aftermarket brand but you are assured that it meets BMW's designs for fitment, performance, and longevity. It will also be the very latest design, incorporating any updates or revisions that an aftermarket brand typically will ignore.

BMW Fitments:

5 Series
E39 (97-03) > M5 (00-03)
