Bottom-End Gasket Set, OEM Elring - E60 545i/550i, E63 645ci/650i, E65 745i/750i

OEM Bottom-End Gasket Set replaces BMW part #11117551866

+ -
+ -
+ -
+ -
+ -
+ -
+ -
+ -

  •

Price:
$190.99

This OEM bottom end gasket set will be invaluable when working in the oil pan area of E60 545i/550i, E63 645ci/650i, E65 745i/750i models with the N62 V8. This set includes all of the major gaskets, o-rings, and seals found in the bottom half of the N62. This kit saves you both time and money because you won't be without a crucial gasket to finish the job. It's like having your own BMW parts counter in a box! This is the perfect addition to any job on the lower half of the engine - oil pan gasket, rod bearings, rear main seal, or during an engine rebuild. These are all OEM gaskets so the quality and fitment are exactly what you expect.

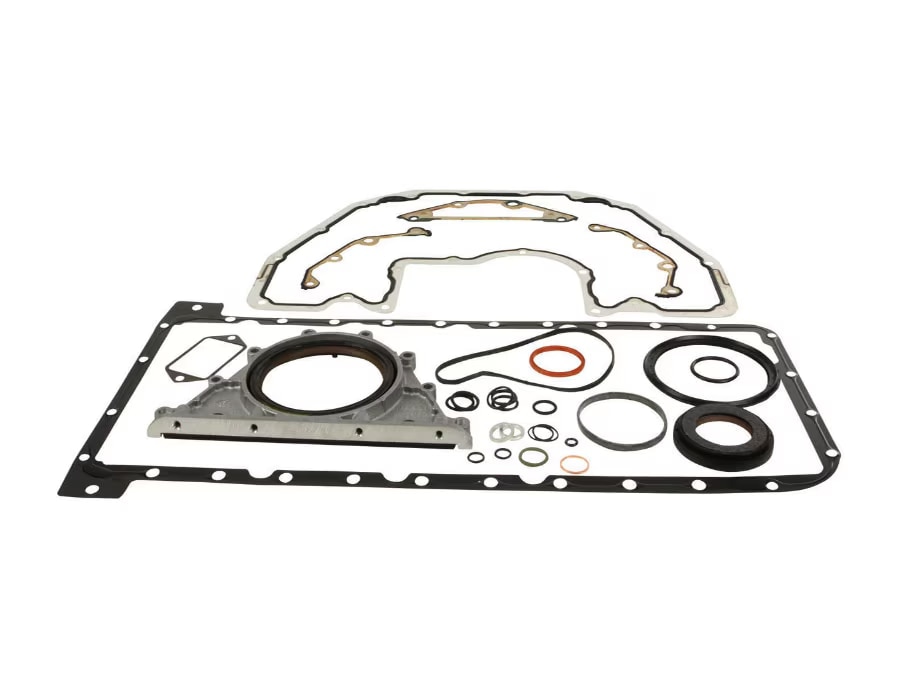

N62 V8 bottom-end gasket set includes:
2 x Engine Block Gasket Ring, A14x20, 07119963225
1 x Drain Plug Gasket Ring, A18x22, 07119963308
1 x Lower Front Oil Pan Steel Gasket, 11137506774
1 x Upper Oil Pan Steel Gasket, 11137545293
1 x Front Timing Cover Gasket Set, 11141439717
1 x Rear Main Seal with Cover, 11147512101
1 x Front Crankshaft Seal, 45x75x13.5mm, 11147647380
2 x Timing Tensioner O-Ring, 17.0x1.8mm, 11411722837
1 x Oil Suction Pipe Steel Gasket, 11417503932 (E65 745i only)
1 x Lower Oil Pan Seal Ring, 11417508114
2 x Oil Pump Inlet O-Ring, 17.5x2.62mm, 11417508288
1 x Oil Pipe O-Ring, 6.0x2.5mm, 11421713597
2 x Alternator Cooling Pipe O-Ring, 18.0x2.5mm, 11421702917
1 x Rear Control Valve O-Ring, 18.0x2.5mm, 11421741129
2 x Dipstick Tube Upper O-Ring, 9x2.2mm, 11431717666
1 x Water Pipe O-Ring, 17.0x3.0mm, 11517507717
1 x Water Pump Profile Gasket, 11517508535
1 x Thermostat Seal Ring, 11531440192
1 x Engine Block O-Ring, 34.2x4.0mm, 11531710048
1 x Oil Level Sensor Gasket Ring, 12611744292
1 x Dipstick Tube Lower O-Ring, 14.5x3.0mm, 11431287541

Because this kit fits multiple models and model years, parts may be included that will not be used on your particular car. It is not unusual to have item(s) left over.

This is an OEM Bottom-End Gasket Set manufactured by Elring Klinger - an original supplier to BMW for many gaskets and seals. As an OEM it meets all of BMW's original design, fitment, and performance requirements and is TUV approved. OEM parts are the best alternative to more expensive Original BMW parts because they are virtually identical without the inflated price tag. This part has a two year warranty.

BMW Fitments:

5 Series
E60 / E61 (04-10) > 545i
E60 / E61 (04-10) > 550i
6 Series
E63 / E64 (04-10) > 645Ci
E63 / E64 (04-10) > 650i
7 Series
E65 / E66 (02-08) > 745Li
E65 / E66 (02-08) > 745i
E65 / E66 (02-08) > 750Li
E65 / E66 (02-08) > 750i
